This article explains how to set up and pair EmbraceMini for the first time using the PKG Monitor App.
Pairing connects the EmbraceMini to the dedicated smartphone via Bluetooth, allowing the device to securely transmit patient data to the PKG Monitor App. This connection is necessary to upload the collected data and support the proper functioning of the overall system..
Follow the steps below to complete the compatibility check, wake up the device, and pair it via Bluetooth.
Please note that pairing must be done only via the PKG Monitor App and not through the phone’s Bluetooth settings.
Step 1: Download and Open the PKG Monitor App
Follow this guide to download and open the PKG Monitor App on your smartphone: How to download the PKG Monitor App.
Step 2: Run the Compatibility Check
Start compatibility check by following the instructions provided here. If your phone is compatible, you will be able to proceed to the login step.
Otherwise, please make sure your smartphone meets all the necessary requirements and try again.
For compatibility, your iPhone must run iOS 18 or higher, or your Android device must run version 13, or 14 or higher and support Bluetooth® 5.0 or higher
Step 3: Log In to the App
Before logging in, ensure you have the following ready to avoid interruptions:
- Internet connection
- Active Bluetooth
- If you have been provided with a charger, make sure your EmbraceMini is charged by placing it in the charger.

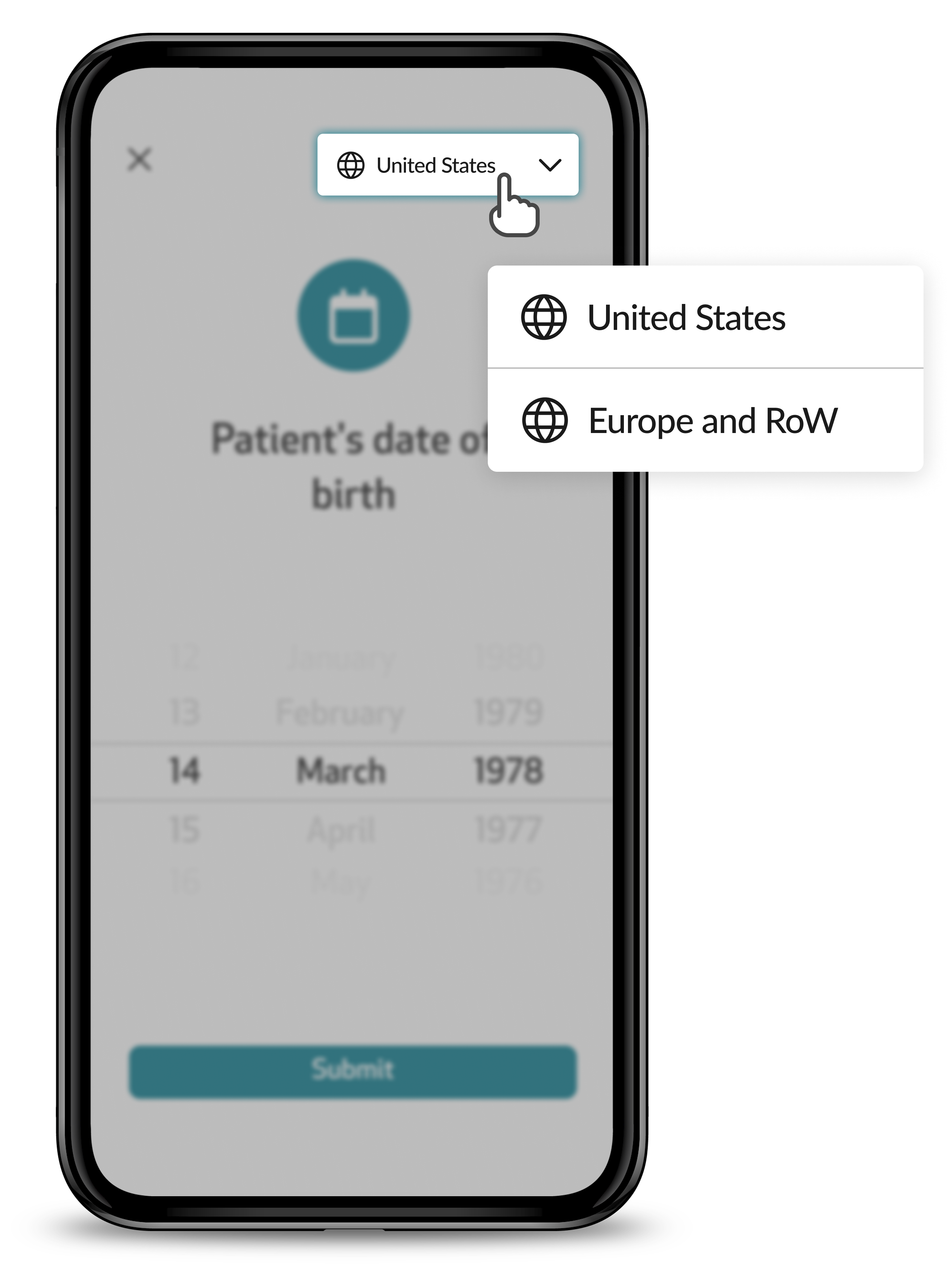

Then, follow this detailed guide to log in using your date of birth: How to log into your PKG Monitor App.
To avoid any issue during this process make sure you selected the right location from the top right corner.

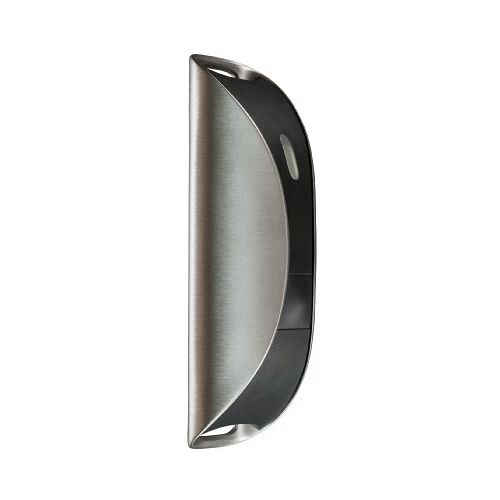

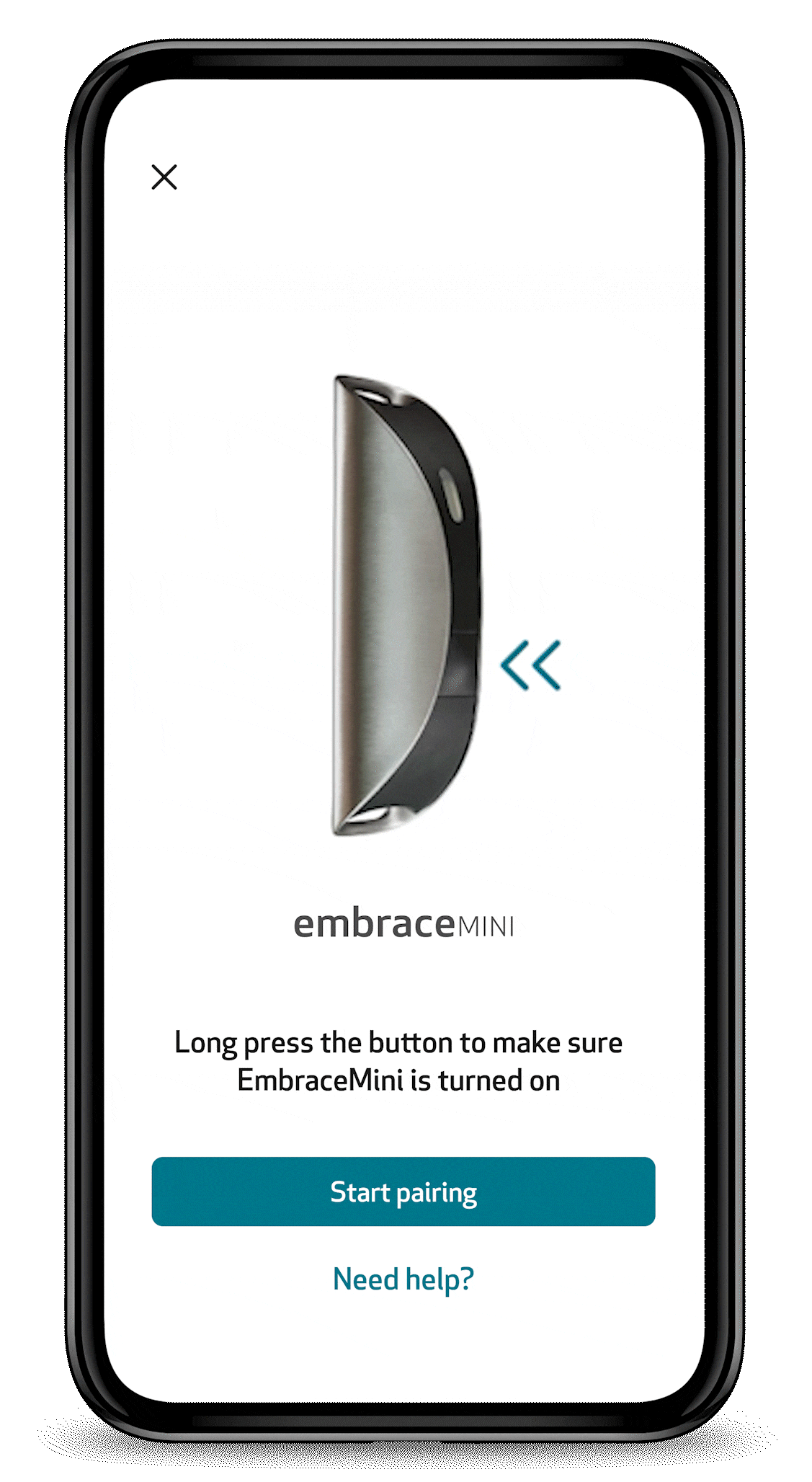

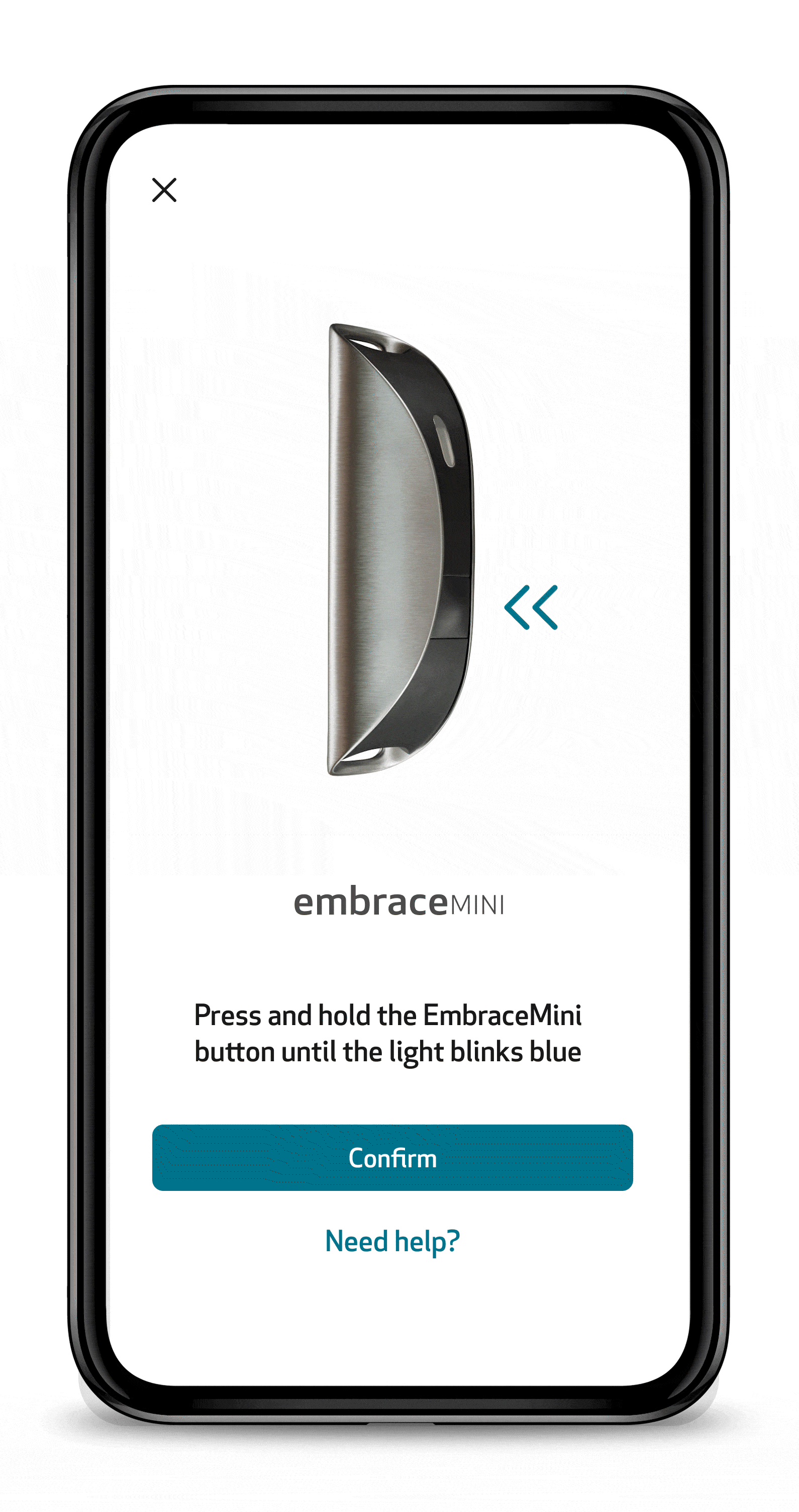

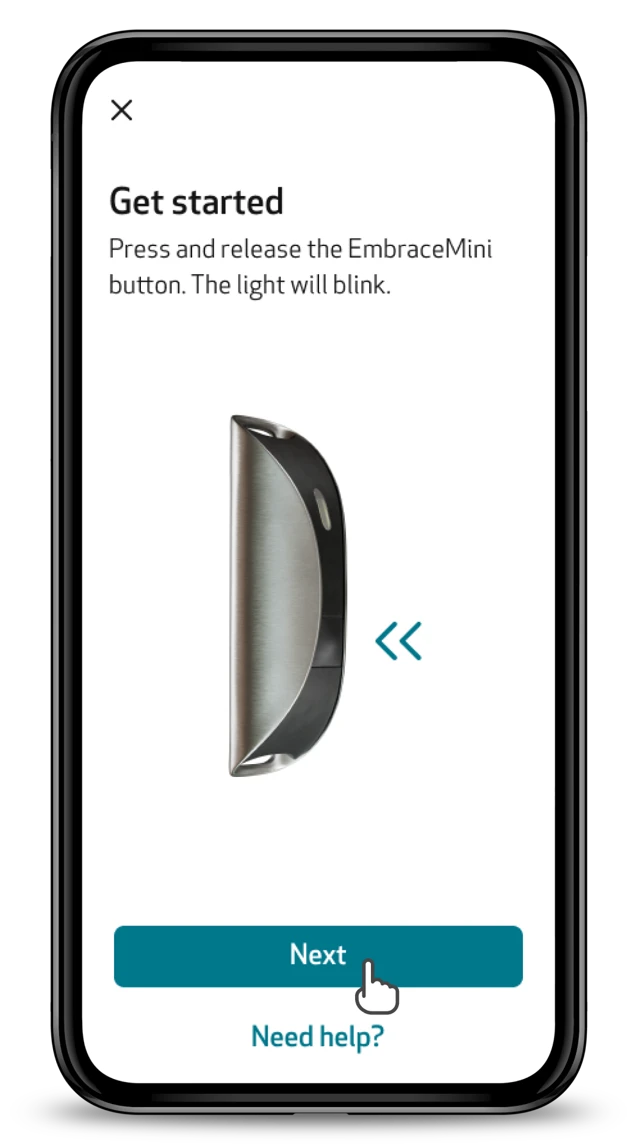

Step 4: Wake Up EmbraceMini
- Hold the front button on EmbraceMini for approximately 5 seconds.
- Check the LED status:
- Slow blinking blue → device is discoverable
If the device does not wake up and you were provided with a charger, place the EmbraceMini on the charger and try again.. The battery may be drained. If a charger was not provided, please contact your clinic to receive one.

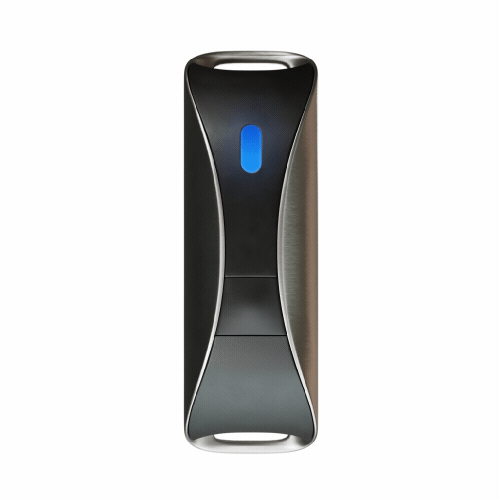

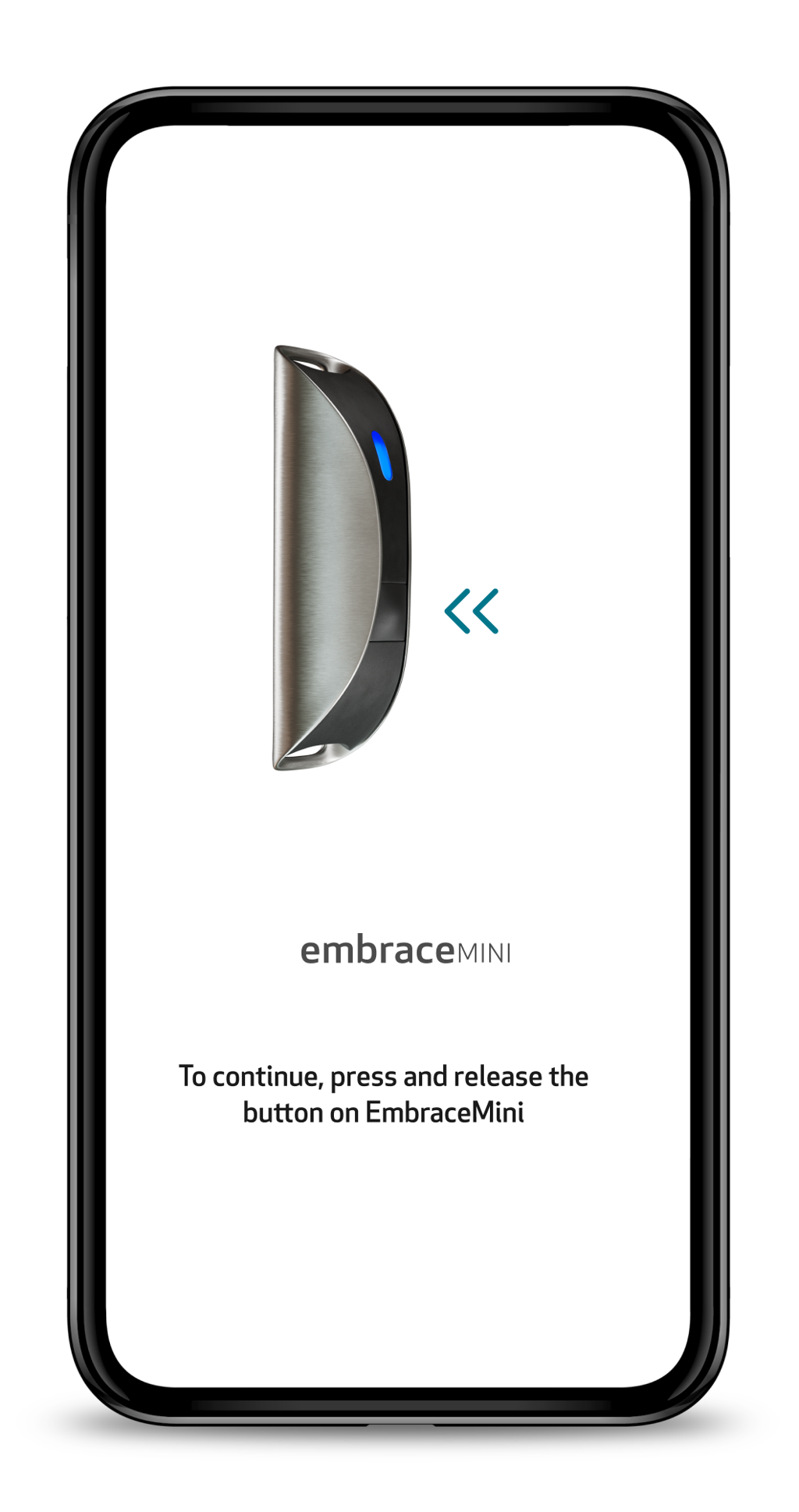

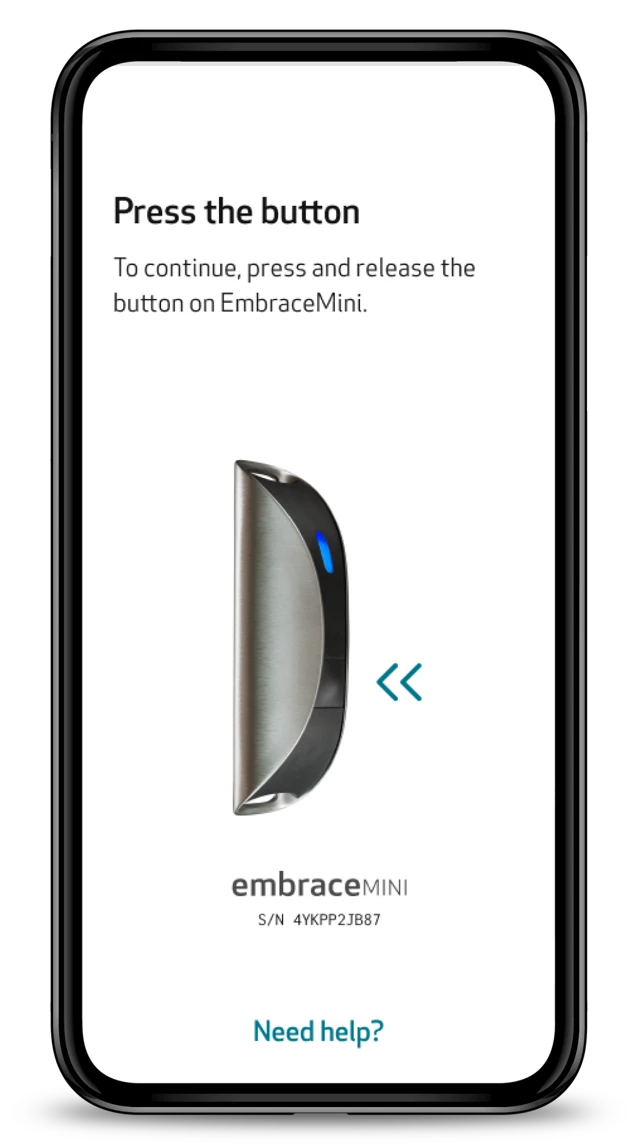

Step 5: Send the Pairing Request from EmbraceMini
- Briefly press the front button once.
- The LED will blink blue quickly, indicating that the pairing request has been sent.

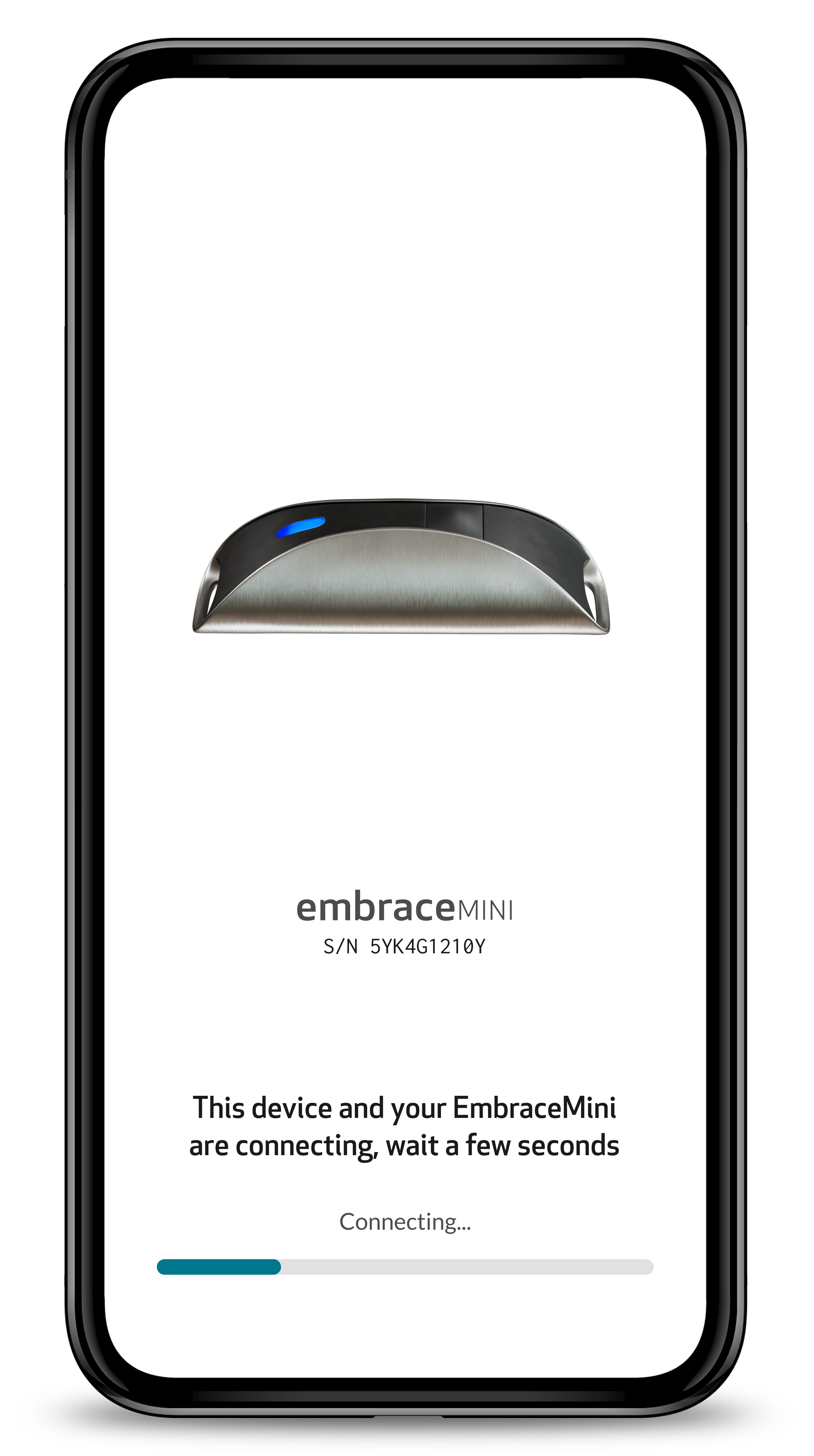

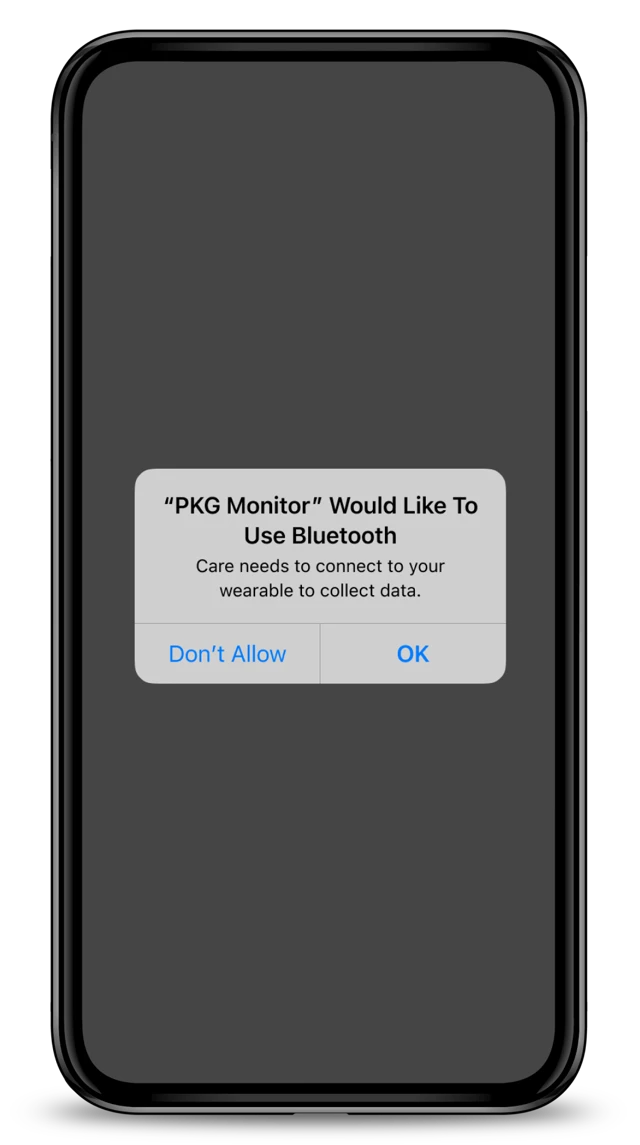

Step 6: Pair EmbraceMini via Bluetooth

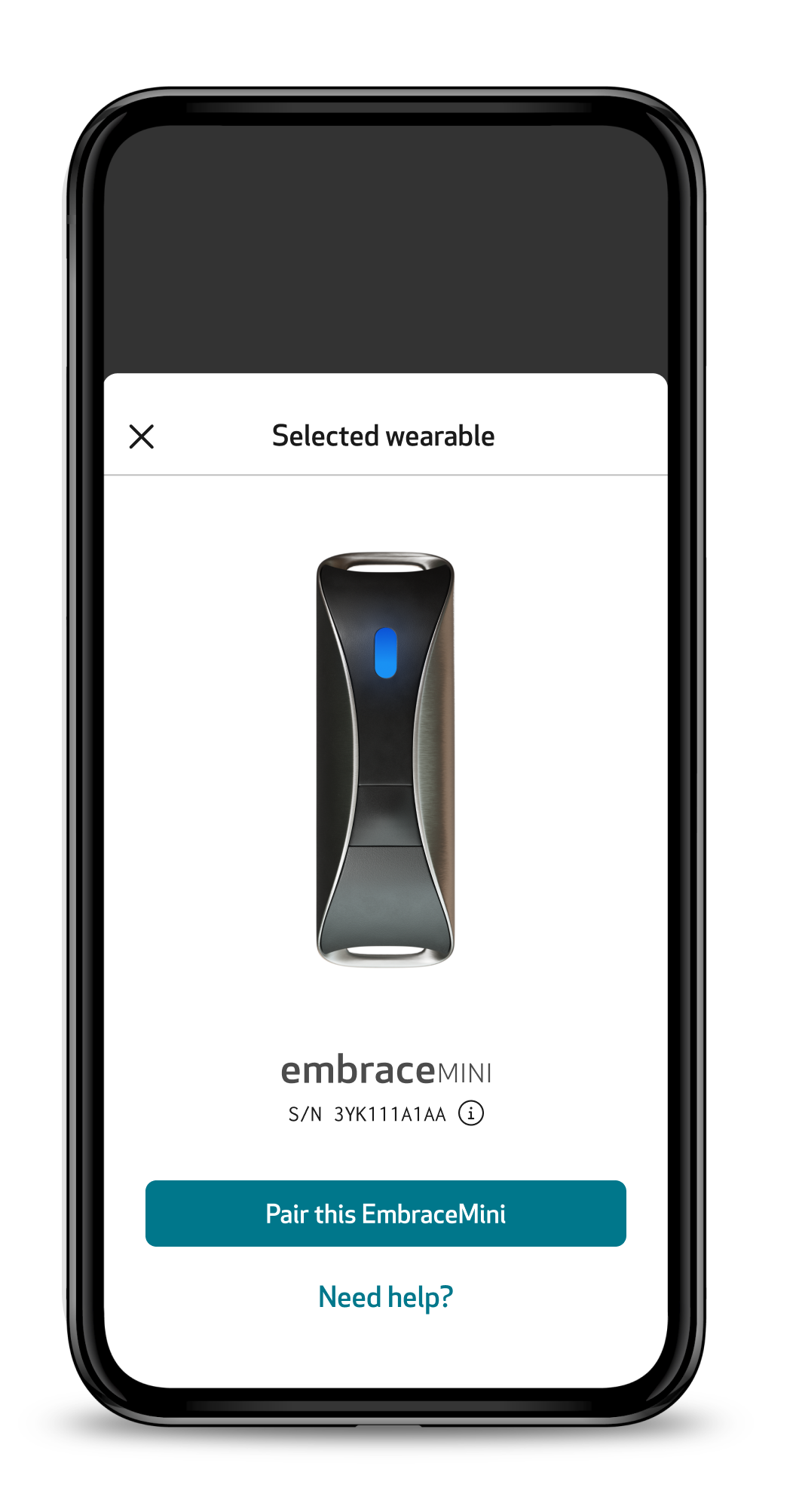

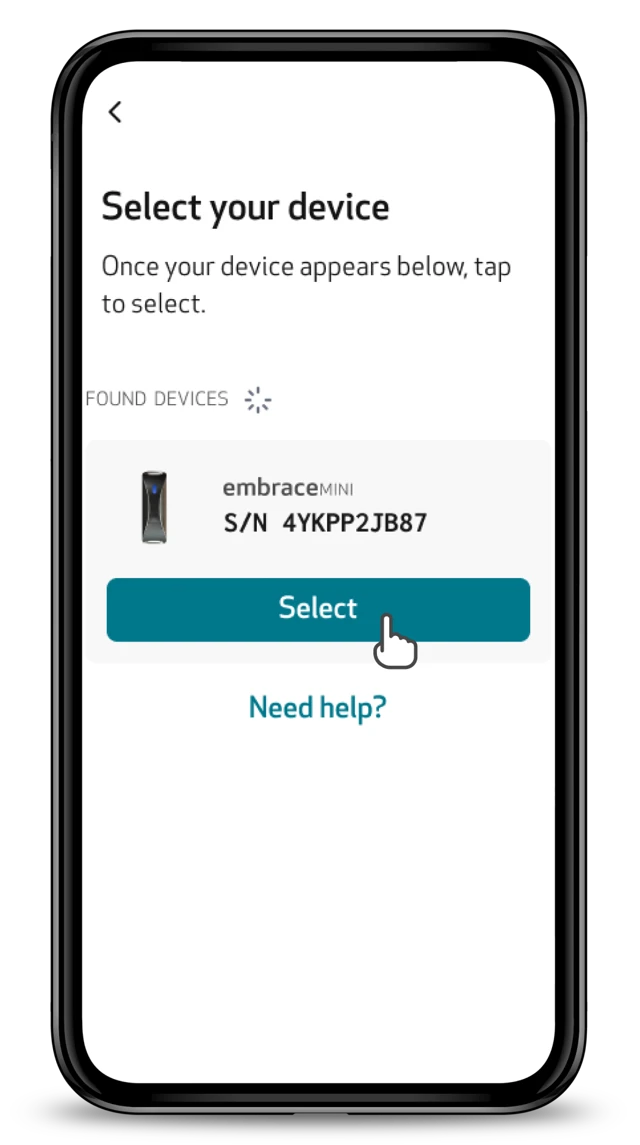

When the app detects your EmbraceMini, its serial number will be displayed—verify that it matches the serial number on your device before continuing. Then, tap Pair this EmbraceMini.

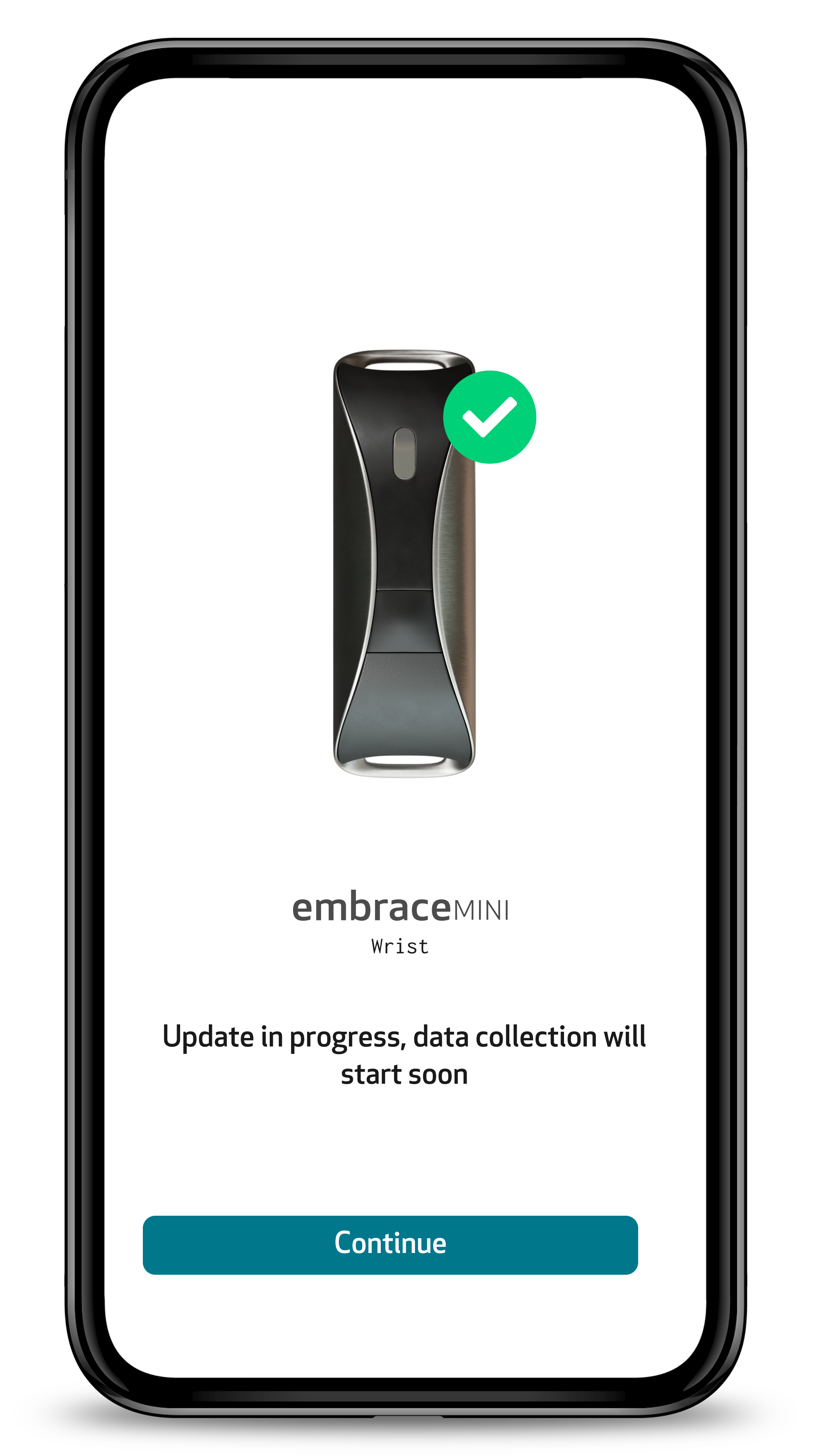

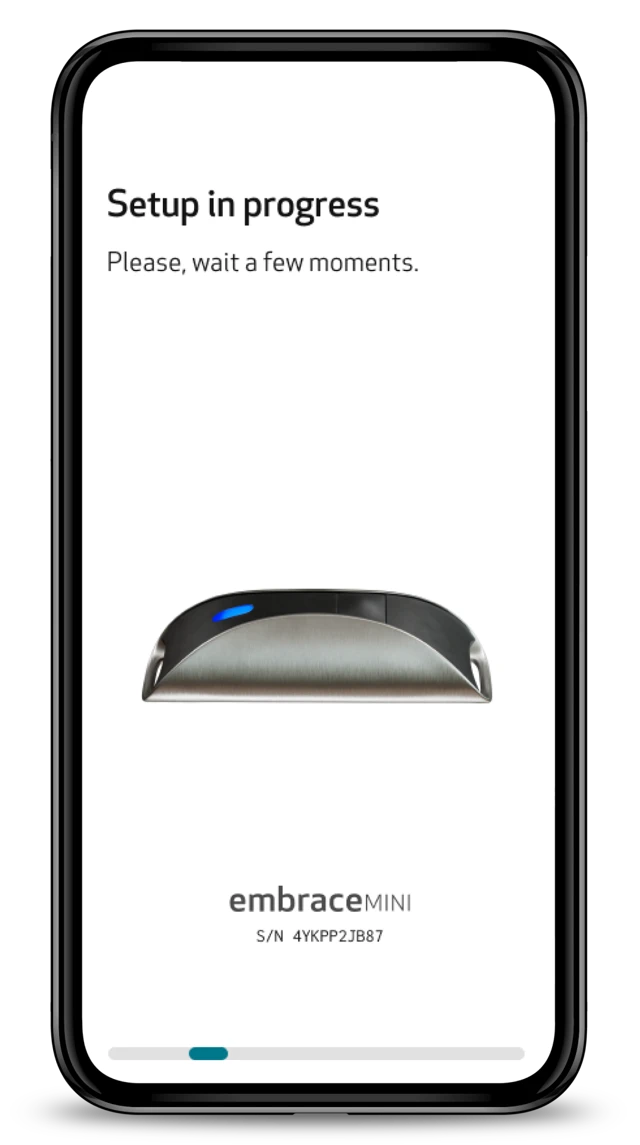

Pairing Complete
Once pairing is successful, EmbraceMini is ready to be used with the PKG Monitor App.
Need Help?
If you have trouble pairing your device, first check this troubleshooting guide. If the issue persists, contact your clinic or our Customer Support Team.
