The LED on your EmbraceMini provides quick information about the device’s status. To check the current condition at any time, press the button once — the LED will show the status immediately. Note that for critical issues, the LED may also blink automatically without pressing the button.
Please note that the LED is normally turned off to preserve battery life — this does not indicate any issue.
Below is a guide to help you understand what each LED color and pattern means.

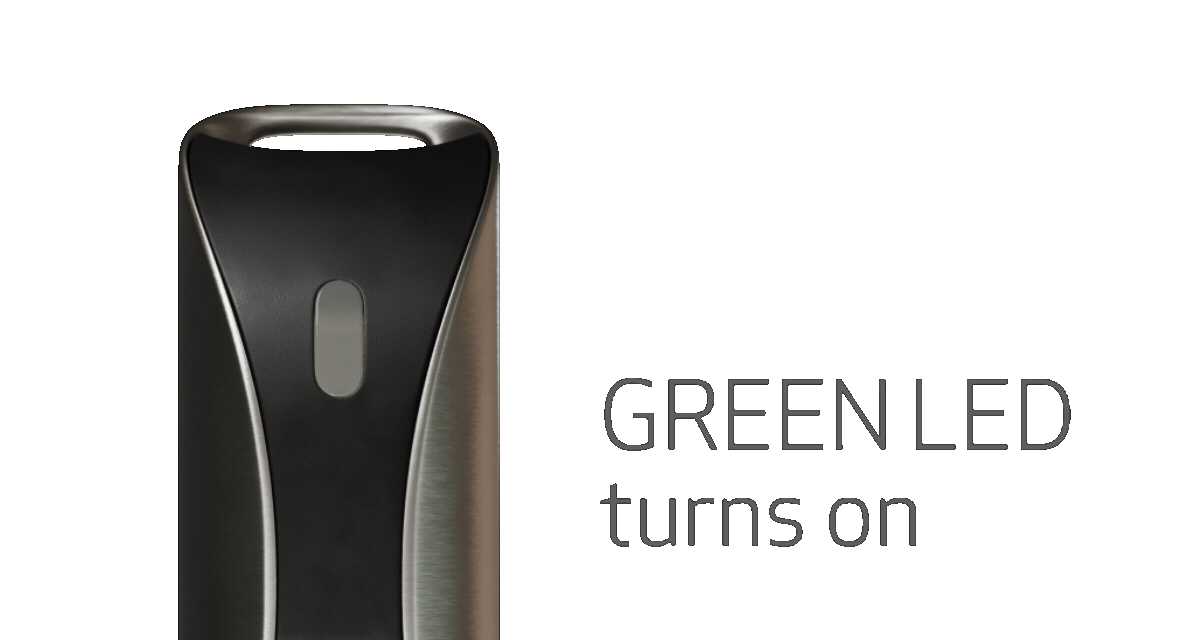

🟢 Green LED – Everything Is OK | |
|
👀 Behavior: Green LED turns on 💡 Meaning: EmbraceMini is functioning correctly. The device is connected, recording data, and no issues are detected. |
|

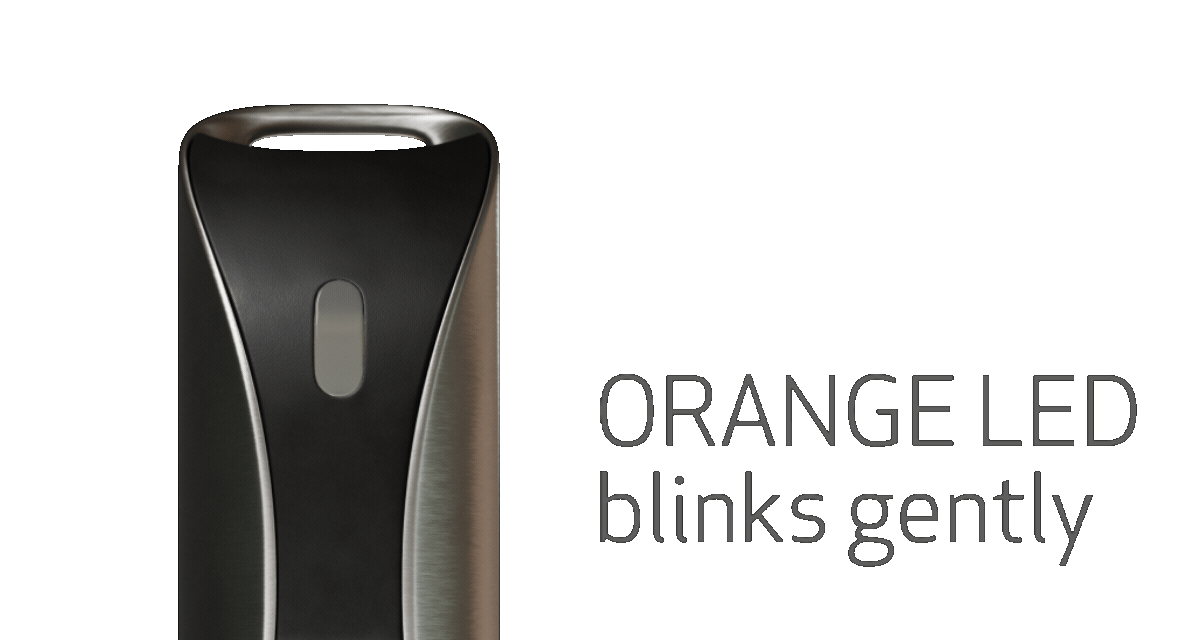

🟠 Orange LED (gentle blinking) – Battery Low | |
|
👀 Behavior: Orange LED blinks gently 💡 Meaning: The battery is low. Please charge EmbraceMini as soon as possible. This notification appears when the device reaches approximately 5% battery level. On a full charge, the battery can last up to 14 days, depending on usage. If you were not provided with a charger, please contact your clinic. |
|

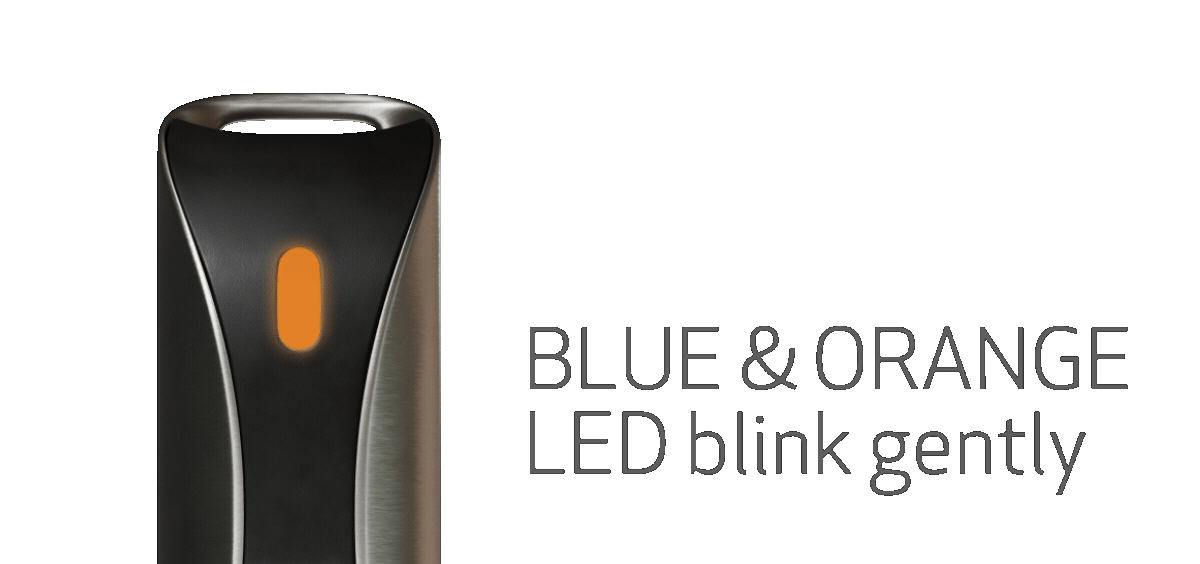

🔵🟠 Blue and Orange LED (blinking) – Bluetooth Error | |
|
👀 Behavior: Blue and orange LED blink 💡 Meaning: There is a Bluetooth connection issue. EmbraceMini is still recording data. Open the PKG Monitor app to reconnect the device. For detailed troubleshooting steps, please refer to our Bluetooth disconnection support article here: EmbraceMini Bluetooth disconnection. |
|

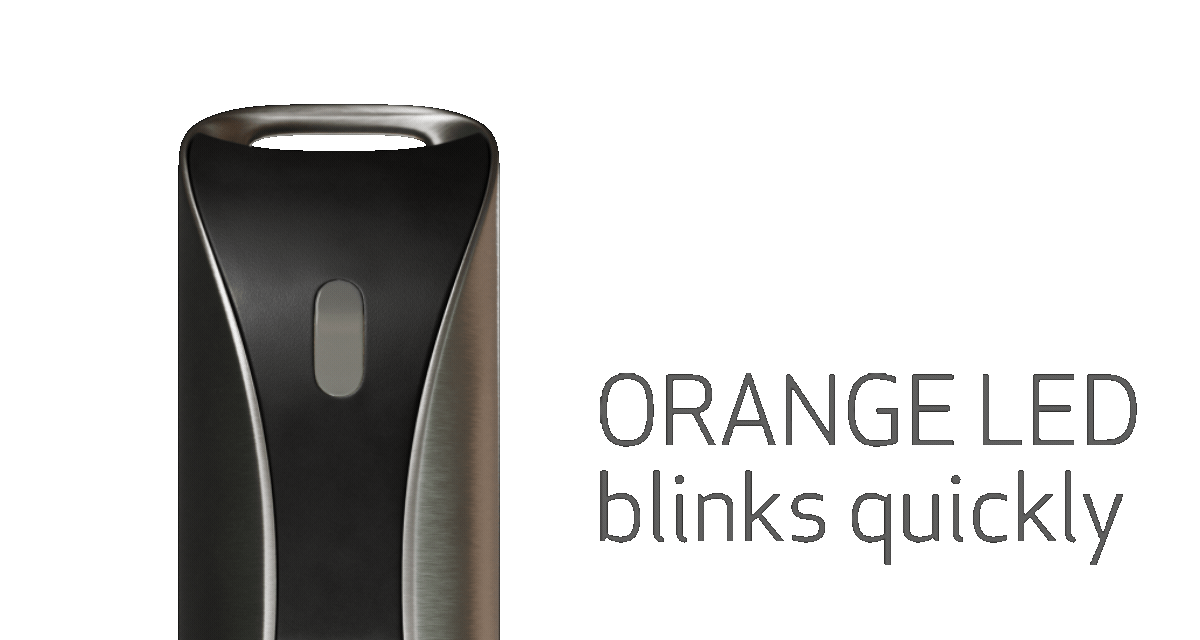

🟠⚡ Orange LED (fast blinking) – Device Error | |
|
|
👀 Behavior: Orange LED blinks quickly 💡 Meaning: A device error has been detected and it is not collecting data. This status may indicate that the device memory is full or that it has stopped recording.Please open the PKG Monitor App to review the device status and follow the on-screen instructions. For guidance on resolving a full memory issue, refer to the troubleshooting article available here: EmbraceMini Full Memory Troubleshooting Article. |

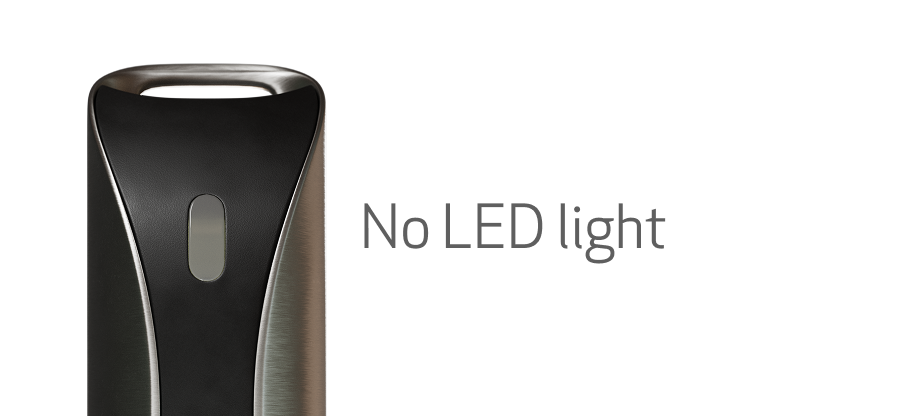

⚫ No LED when pressing the button – Battery depleted | |
|
|
👀 Behavior: When pressing the button, no LED lights appear. 💡 Meaning: This indicates that the device battery is fully depleted. The device needs to be placed on the charger before it can resume normal operation. If you were not provided with a charger, please reach out to your Clinic. For detailed instructions on how to properly charge the device, please refer to this article: EmbraceMini is not charging. |
LED Guide When Device Is in the Charger
If you were not provided with a charger, please reach out to your Clinic.
⚪ White LED (blinking) – Charging in Progress | |
| |
👀 Behavior: White LED blinks. 💡 Meaning: The device is correctly placed in the charger and charging is in progress. Please be aware that the LED light will turn off when charging is complete. |
⚫ No LED while in the charger – Battery fully charged | |
|
|
👀 Behavior: After being placed in the charger for some time, no LED lights appear. 💡 Meaning: The device is fully charged |
